Description

SPECIFICATIONS

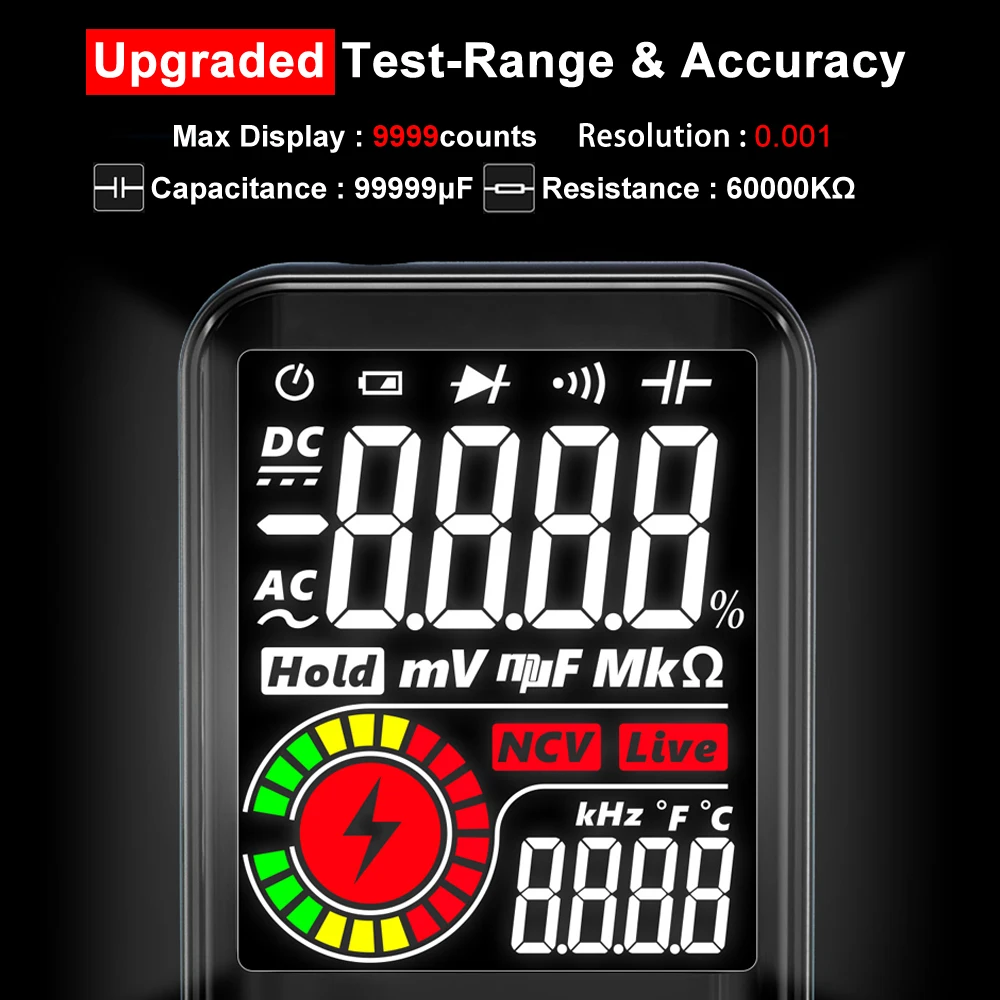

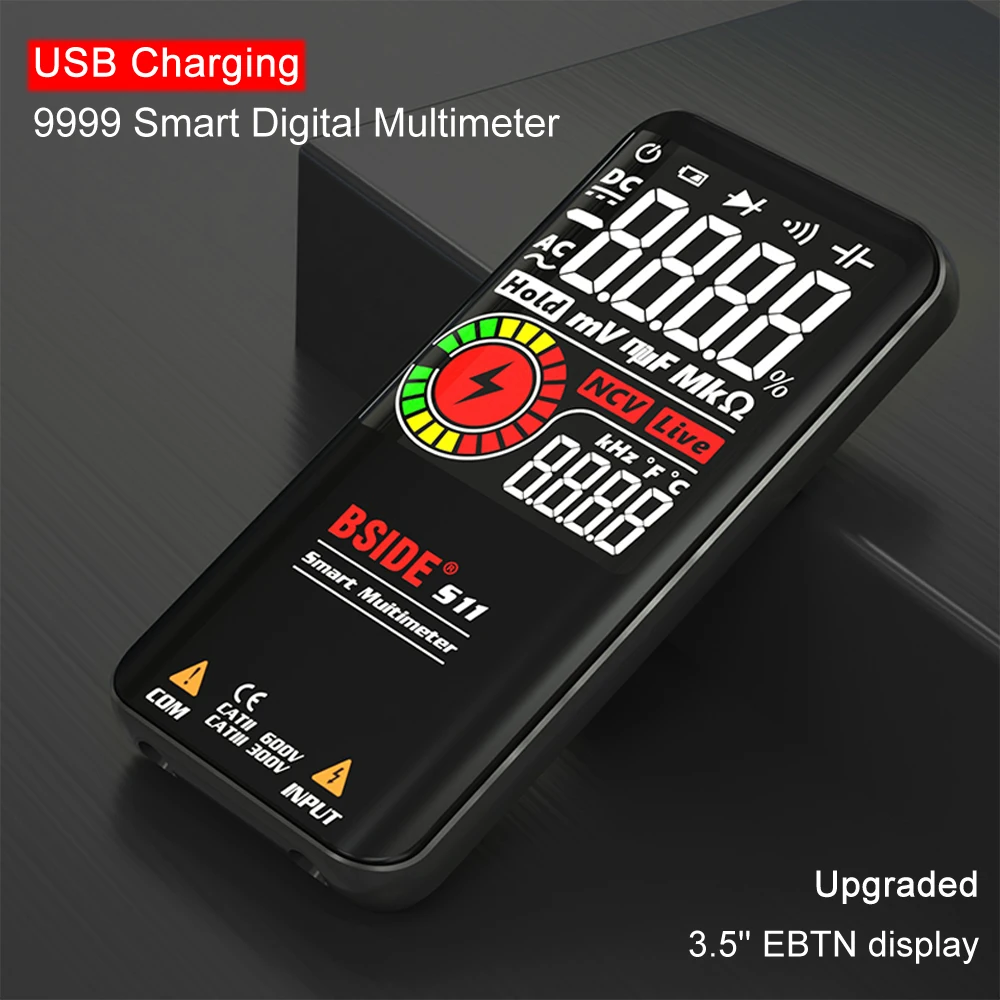

• Display: 9999 counts, 3.5-inch high-definition EBTN screen.
• DC Voltage Range: 0-620V ±(0.5%+3), Resolution: 0.001V.
• AC Voltage Range: 0-620V ±(0.5%+5), Resolution: 0.001V.
• Resistance Range: 1Ω-999.9Ω ±(2.0%+5), 1kΩ-60MΩ ±(1.0%+3), Resolution: 0.11Ω.
• Capacitance Range: 1nF-999.9nF ±(6.0%+5), 1uF-99.99mF ±(3.0%+3), Resolution: 0.001nF.
• Frequency Range: 1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V), 1KHz-60KHz ±(1.0%+5) (ACV:10V-620V), Resolution: 0.001Hz.
• Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V), Resolution: 0.1%.
• Diode Test: Auto identifies diode if less than 3.0V.
• Non-Contact Voltage Detection (V-Alert): Beep alarm sounds.
• Live Wire Check: Alarm beep sounds, LCD screen displays stripe.
• Continuity Test: Beeper sounds if resistance is less than 30Ω.
• EMF Detection (S20 Only): Included.
• Power Source:
  • S10: 1.5V (AAA) x 2 (batteries not specified as included).

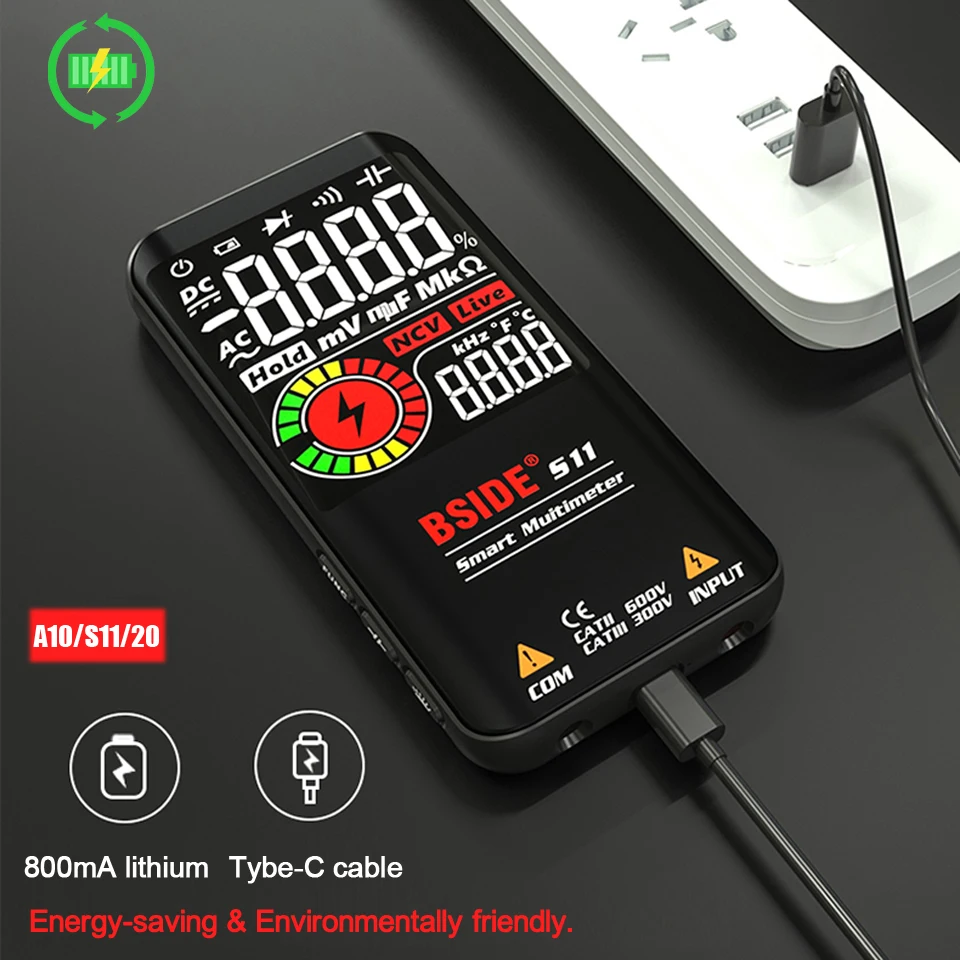

  • A10/S11/S20: Built-in 800mA rechargeable lithium battery with USB charging.

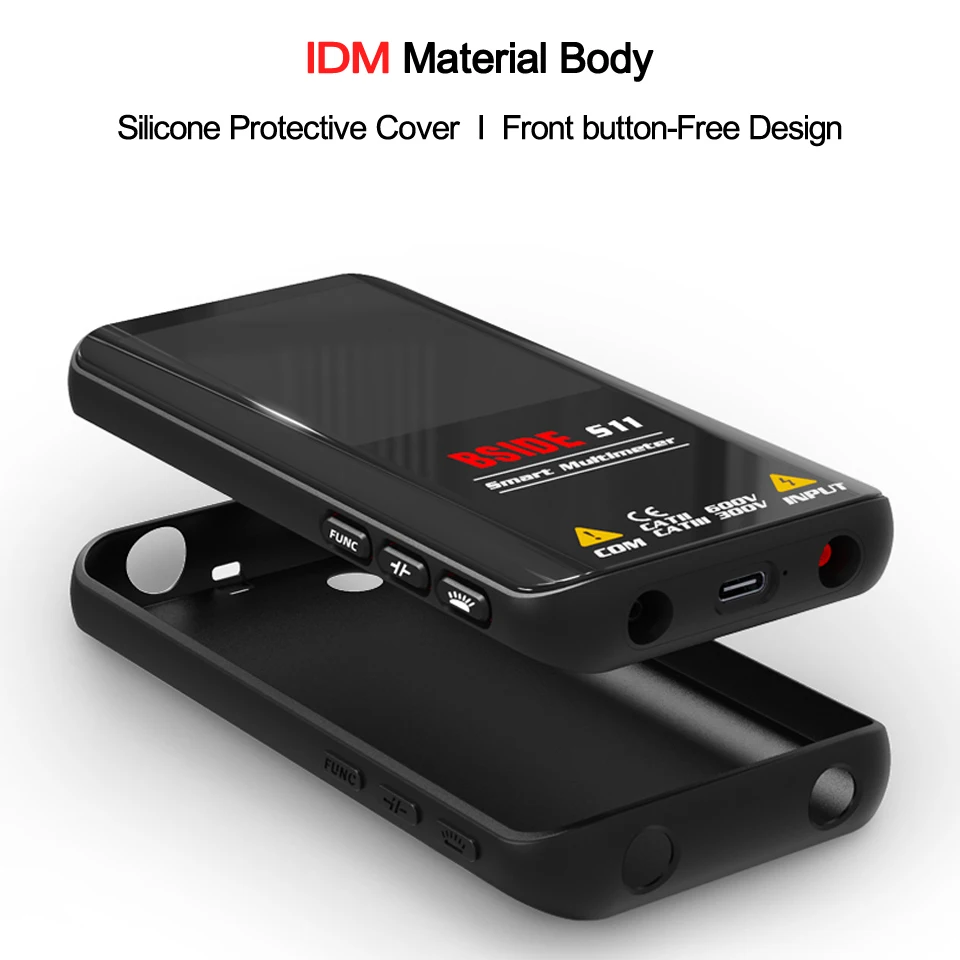

• Body Material: IDM Material Body.
• Protection: Silicone Protective Cover (S11/S20).
• Design: Front button-free design.
• Package Size: 1478542mm.
• Package Weight: 180g.

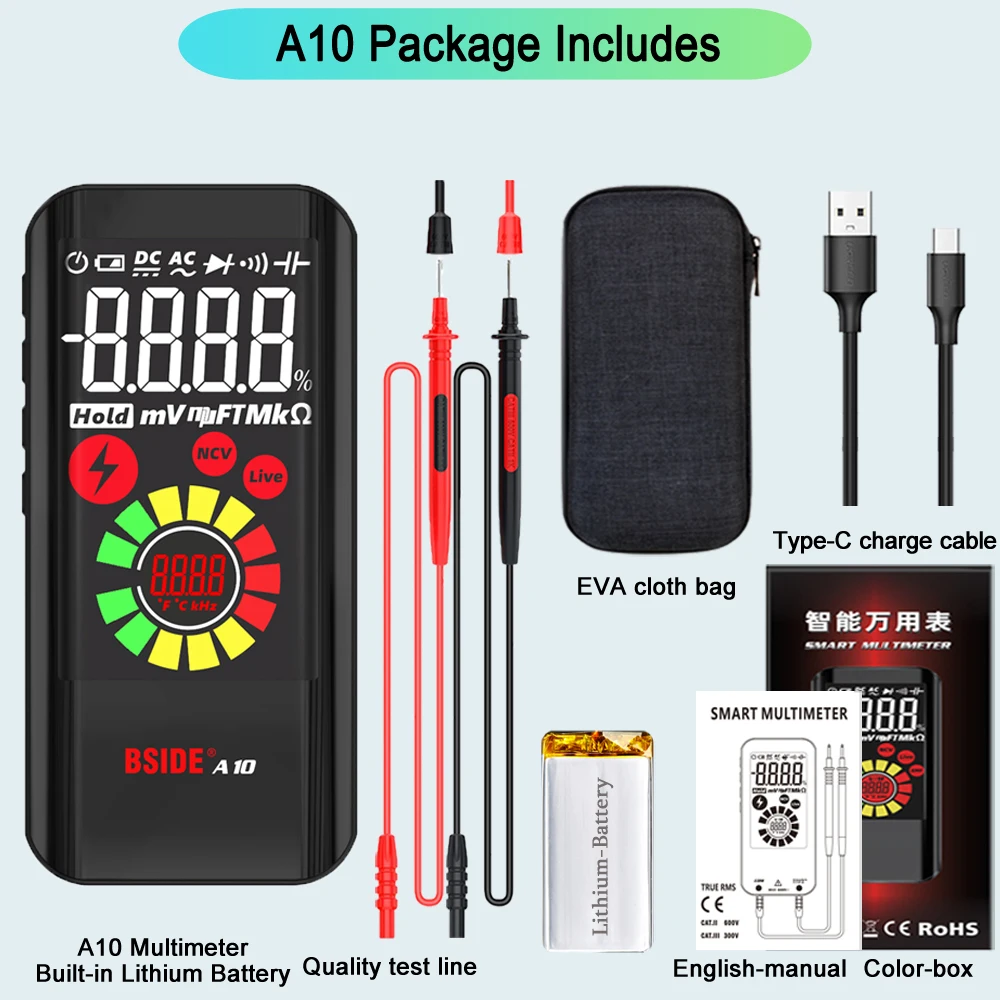

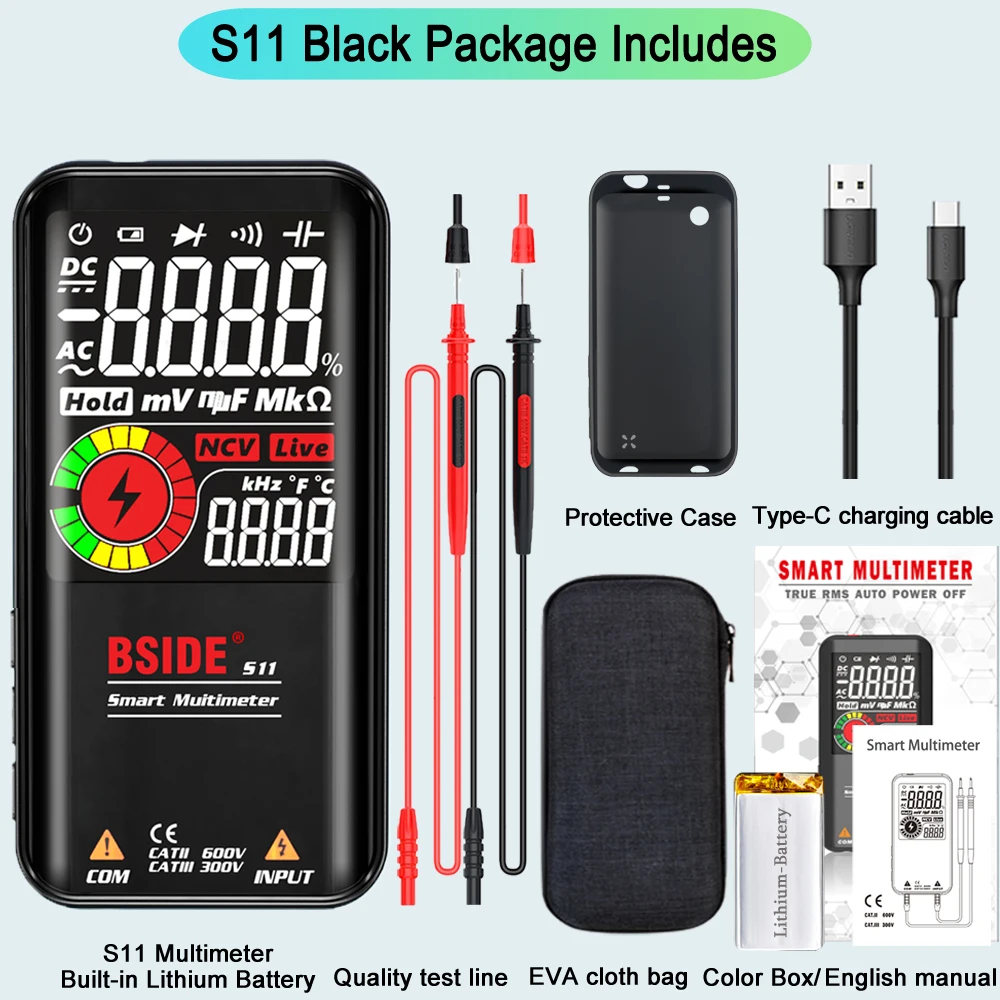

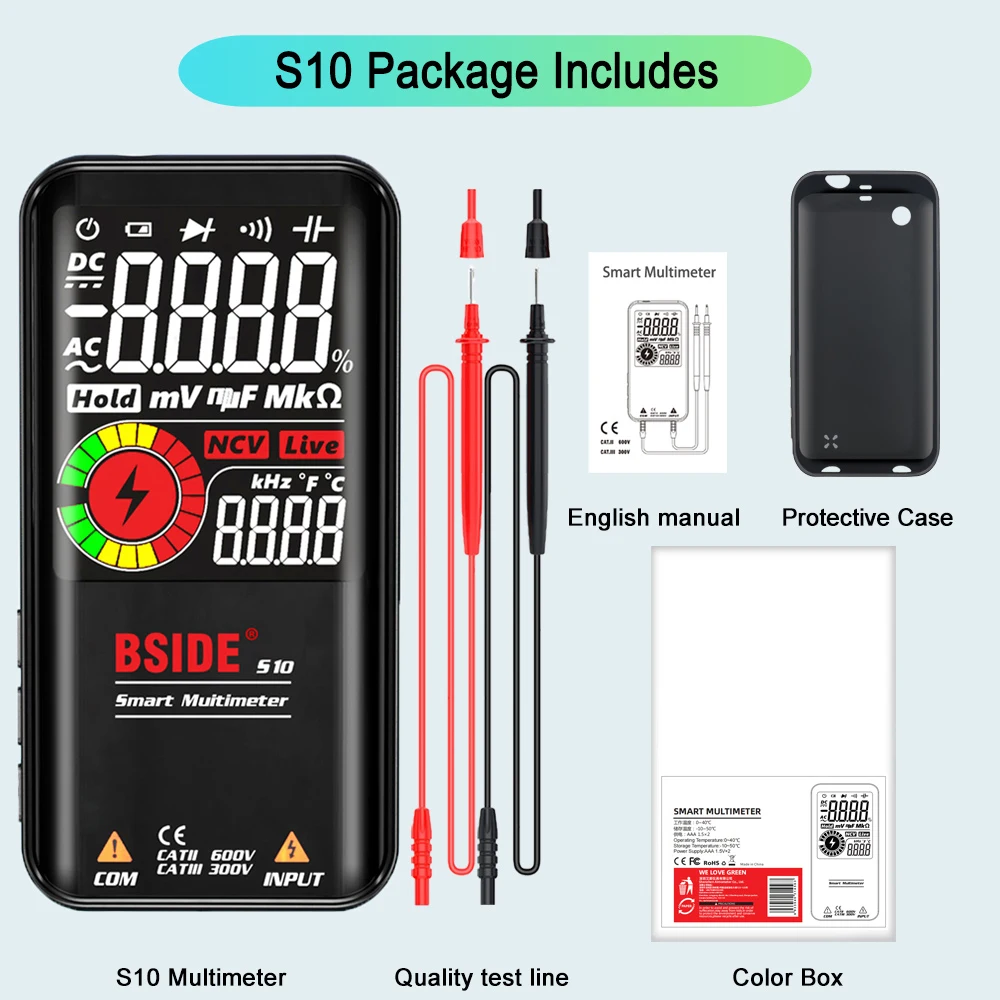

• Package Includes:
  • 1 x Multimeter.
  • 1 x Test Lead.
  • 1 x English User Manual.
  • 1 x Packing Box.
  • 1 x Protective Shell (S11/S20).
  • 1 x USB Charging Cable (A10/S11/S20).
  • 1 x EVA Portable Cloth Bag (A10/S11/S20).

Key Differences Between Models:

• A10: Cost-effective smart multimeter with rechargeable lithium battery and USB charging.
• S10: Uses 1.5V AAA batteries for power.
• S11: Built-in 800mA rechargeable lithium battery with USB charging.
• S20: Highest version, includes EMF detection, built-in rechargeable lithium battery, and USB charging.

Based on the provided specifications and the search results for "BSIDE S20 Profesional Digital Multimeter", the resolution for DC and AC Voltage is 0.001V
